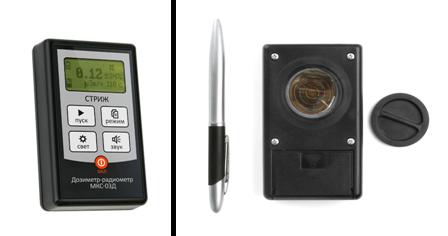

• Small size portable professional device intended for measuring
  • Measurement of gamma and X-ray radiation ambient dose equivalent rate.
  • Measurement of gamma and X-ray radiation ambient dose equivalent.
  • Measurement of surface beta-particles flux density.


  • Independent measuring channel: gamma-radiation dose power and flux density of beta-radiation
  • Continuous measurement with constant specification of the result
  • Assessment of the radiological situation by the sound signals (clicks), frequency of which is proportional to the dose power (flux density)
  • The resultof measurement with any necessary statistical error
  • Automatic restart of the device when changing the type of measured radiation while measuring.
  • Compensation of the counting rate due to the presence of gamma radiation while measuring flux density of betaradiation
  • Indication of statistical error while measuring
  • Indication of unit of measurement
  • Indication of the level of battery charge
  • Backlight display

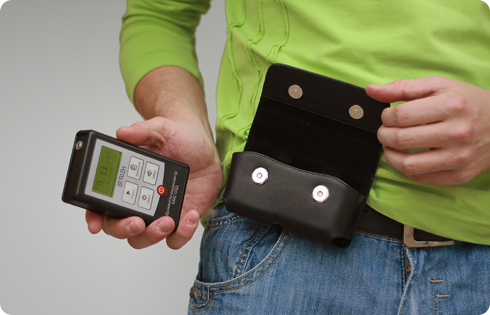

  • Pocket size


  • Sensitivity which is sufficient for correct measurements on the natural background, combined with a high upperlimit of dose rate measurement
  • Using the device as a personal dosimeter for automated systems for collecting dosimetric data due to its abilityto transmit time-referenced data about the accumulated dose
  • Keeping an internal archive of values of accumulated dose int he non-volatile memory-not less than 2000 records
    Possibility to set from 1 to 3 values of alarm level limits and there is a sound in case of exceeding these limits
  • Control and alternation of parameters is performed using keyboard or PC with specialized software


Measurement Range:


  • Power of the equivalent of the ambient dose
    from 0,1 mSv / h to 0.1 Sv/h
  • Ambient dose equivalent
    from 0.01 mSv to 40 Sv
  • Flux density of beta-radiation
    from 12 to 107 min-1 cm-2
  • Energy range of registered gamma radiation is
    from 0,05to 3,0MeV
  • Energy range of registered beta radiation is from
    0.12 to 3.0 MeV
  • Energy dependence of sensitivity of gamma-channel in the range from 0.05 to 1.25 MeV is not more than ± 25%relative to sensitivity to the energy of the radionuclide 137Cs
  • Limits ofthe basic relativeerrorof measurement:
    dose rate is ± (20 +2 / Ax)%, where Ah is a numeric measured value
    flux density is ± (20 200 / Ax)%, where Ah is a numeric measured value
  • Transferring of measurement results to PC via USB port according to protocol DiBUS
  • Operation mode setup time is, ……… … ………………. not more than 5 seconds
  • Dosimeter is charged by two AA dry or rechargable batteries
  • Continuous operation of the charged set of batteries with the capacity of not less than 2700 mA • h is. 700 hours
  • Operating Temperature Range is ..from minus 20 ° C to +50 ° C
  • Relative humidity of ambient air is … … …. … … … … .. Up to 95% at +35 ° C
  • Ingress protection:  IP54
  • The designated service life of the dosimeter-radiometer is 8 years

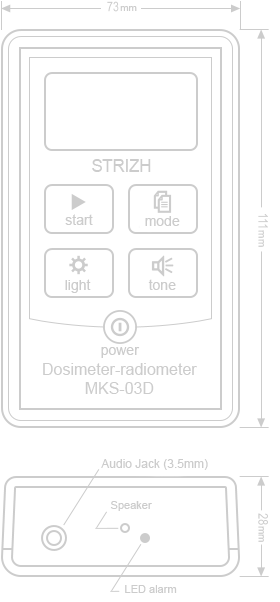

  • Overall dimensions of the dosimeter-radiometer are not more than 111 × 73 × 28 mm
  • Weight of the dosimeter-radiometer is not more than 0,2 kg
