Purpose:

  • measurement of dose and ambient equivalent dose-rate (hereafter dose and dose-rate) H*(10) and H*(10) of continuous and pulsed gamma and X-ray radiation;
  • measurement of alpha and beta radiation flux density;
  • measurement of dose H*(10) and dose-rate H*(10) of neutron radiation;
  • measurement of gamma radiation flux density;
  • search and localization of radioactive sources and contaminations;
  • measurement of gamma radiation flux density and dose-rate in boreholes and liquid media;
  • radiation survey of territories with fixing of geographical coordinates using GPS sensor;
  • control unit can be used as a pulse counter.



Features:

  • automatic determination of detector type and selection of corresponding measurement modes;
  • indication of several simultaneously measured quantities (for gamma and beta measurement channels of detector units BDKS-96c and BDZB-96b);
  • indication of dynamic scale and signaling information attributable to the instrument’s status and all measured quantities (excess of thresholds, presence of external interference, battery status, etc.);
  • A lot of alarm threshold settings – for dose and dose-rate (lower, upper warning and upper thresholds), for alpha and beta contaminations (flux densities);
  • fast monitoring mode using three preset thresholds;
  • convenient keyboard with direct access buttons for display illumination and for control of thresholds of the audible alarm;
  • automatic selection of low or high sensitivity measurement mode of the BDMG-96 detector unit;
  • “Search” and “detection” modes of operation allow to perform surveys in a more effective way and to prevent errors of the operator;
  • USB interface for communication with personal computer;
  • nonvolatile memory for 2000 measurement results (viewed on the display of the DKS-96 control unit or on the PC screen);
  • measurement mode with background substraction.



Measurement modes

  • measurements with user defined time interval;
  • measurements with unlimited time and periodic upd ate of the measurement result (until the statistical error drops down to 6%);
  • dose measurement (for gamma and neutron radiation);
  • automatic – measurements with user defined time interval (1÷60 min) and archiving the results into memory;
  • pulse count feature (DKS-96 counts pulses fr om the probe on 10, 30, 100, 300, 1000, 3000 second intervals);
  • “Detect” and “Locate” modes for survey probes;
  • threshold mode for estimation of measured radiation intensity in comparison with one, two or three thresholds and indication of both the numeric value and a corresponding message (“Excess”, “Normal”, “Clean”, “Clean!”).



Basic complete set:

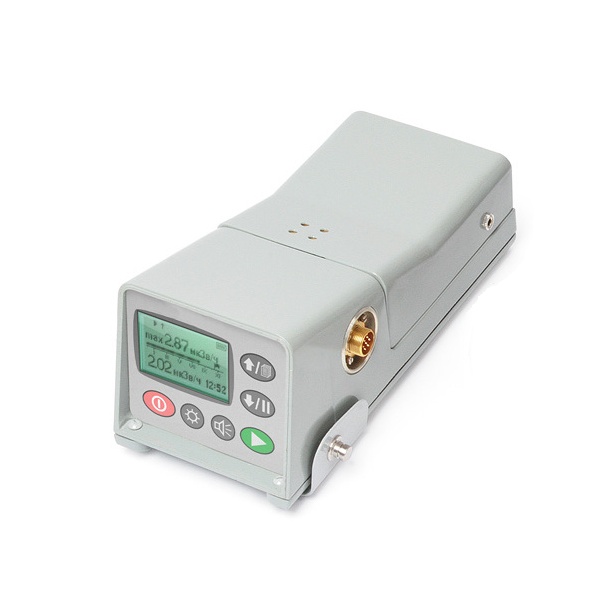

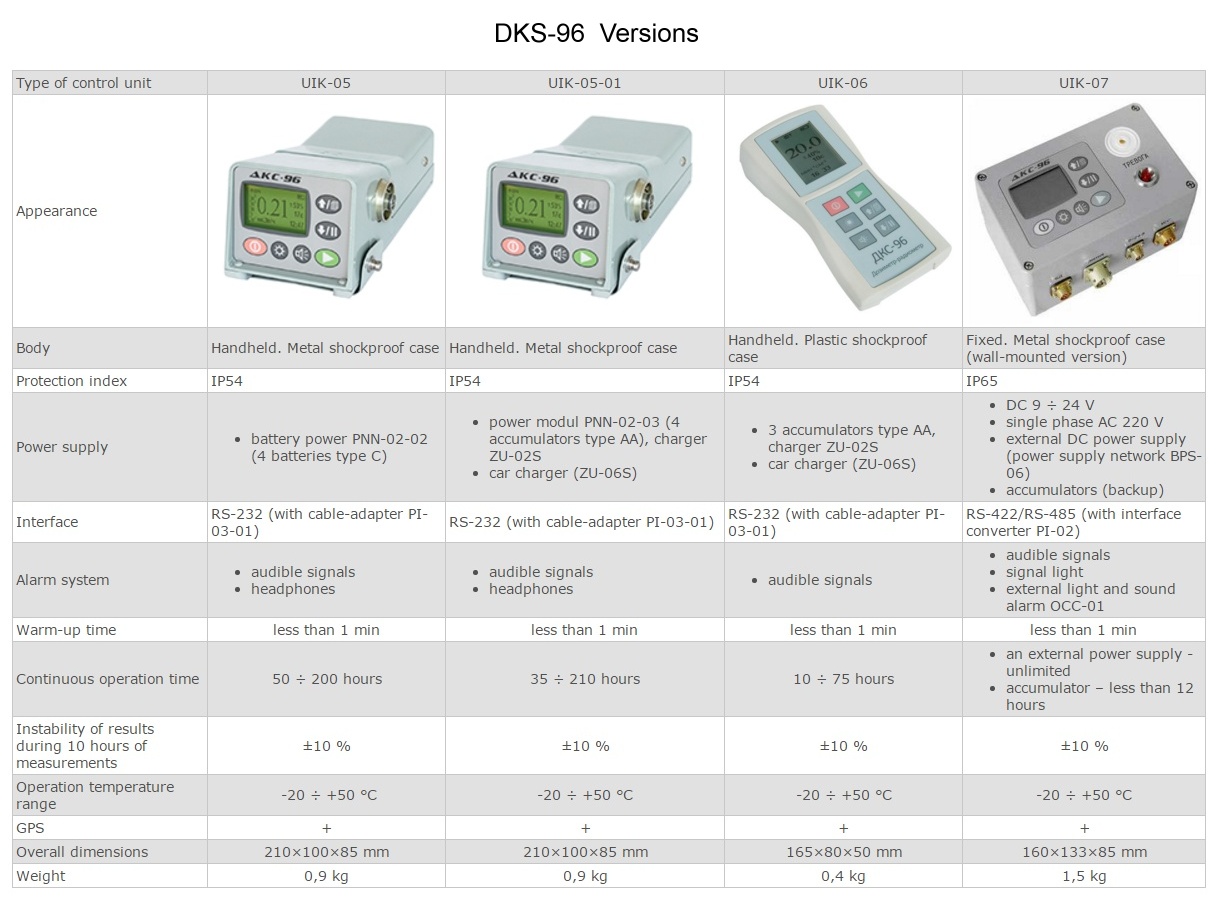

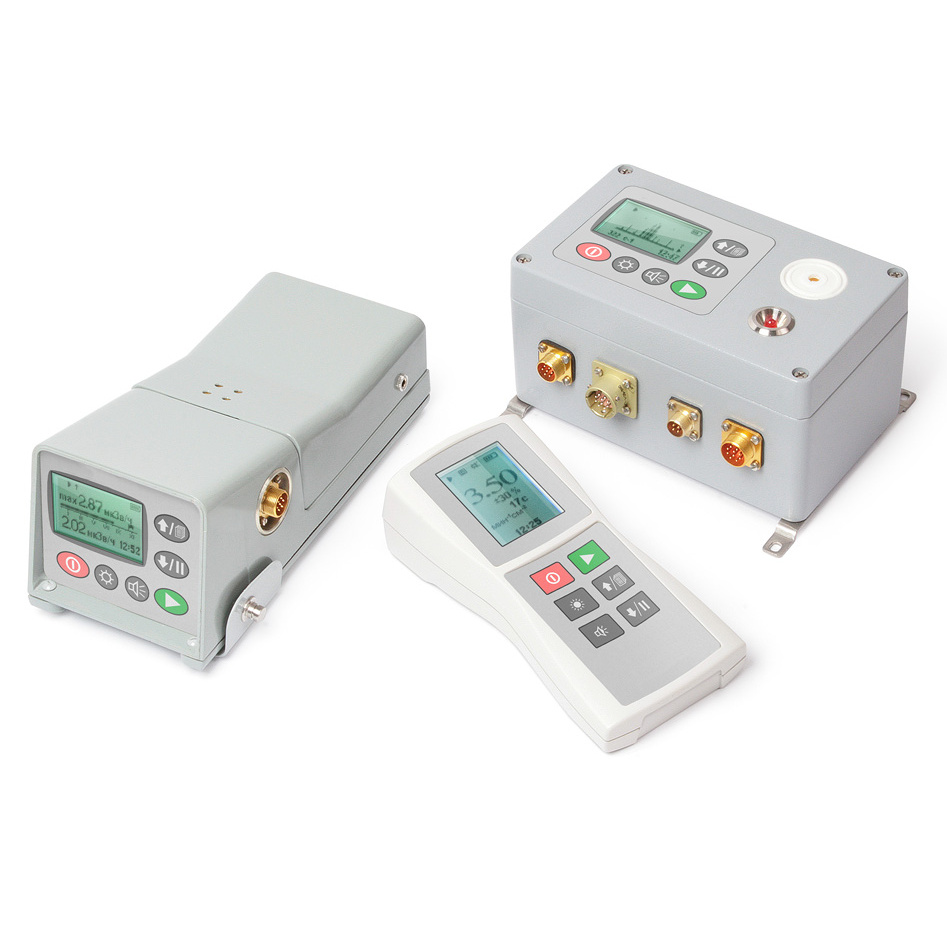

  • UIK-05 (UIK-05-01) or UIK-06 control unit (at the customer’s option);
  • probes (at the customer’s option);
  • case;
  • passport and operation manual;



Optional equipment and service

  • cable for connection to a computer;
  • software;
  • charge adapter CA-02C;
  • headphones;
  • matching unit MU-96;
  • lightproof casings for BDZA and BDZB probes;
  • expanding pole 0.7; 1.6; 4 m;
  • GPS sensor.

External probes for DKS-96:

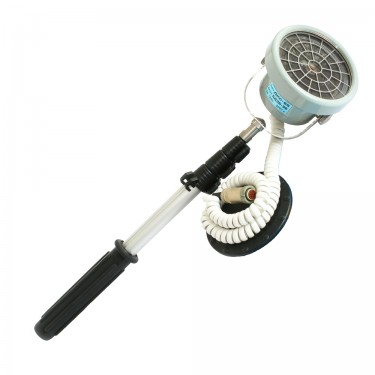

BDZB-99

Beta radiation measurements 30 cm2 probe for DKS-96 and evaluation of gamma radiation dose rate

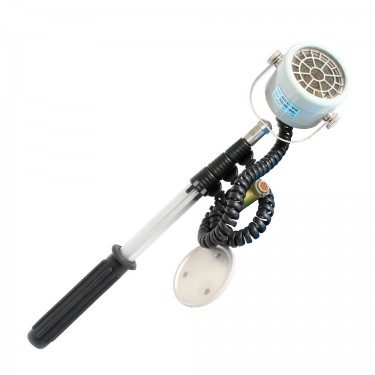

BDZB-96S

Beta radiation measurements 15 cm2 probe for DKS-96

BDZB-96b

Beta radiation measurements 80 cm2 probe for DKS-96, with automatic Gamma radiation compensation

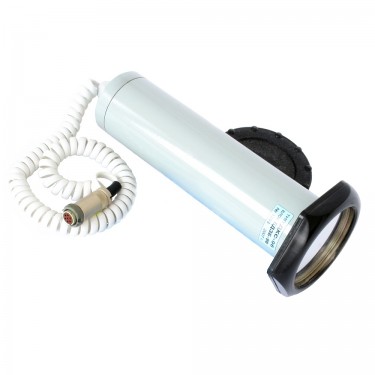

BDZB-96

Beta radiation measurements 28 cm2 probe for DKS-96

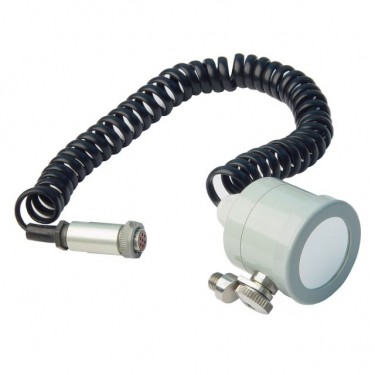

BDZA-96T

Alpha radiation measurements 5 cm2 probe for DKS-96, designed to check hard-to-reach places.

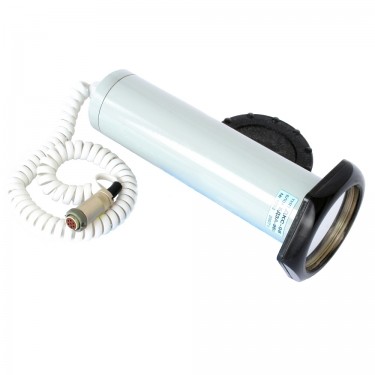

BDZA-96S

Alpha radiation measurements 30 cm2 probe for DKS-96

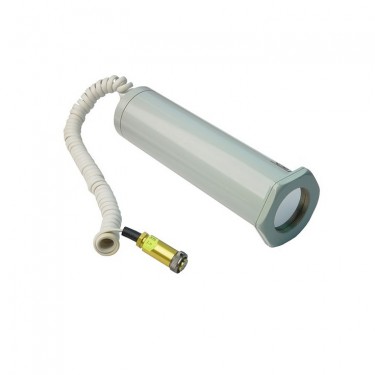

BDZA-96M

Alpha radiation measurements 10 cm2 probe for DKS-96

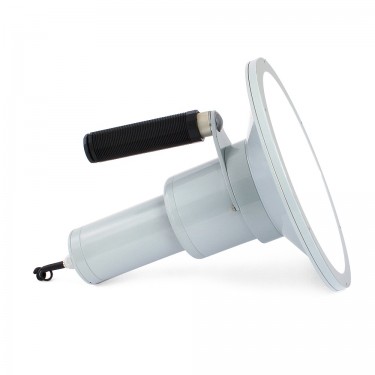

BDZA-96B

Alpha radiation measurements 300 cm2 probe for DKS-96

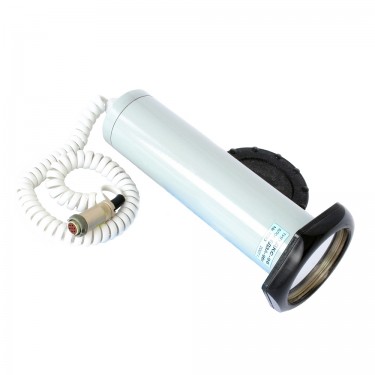

BDZA-96

alpha radiation measurements 70 cm2 probe for DKS-96

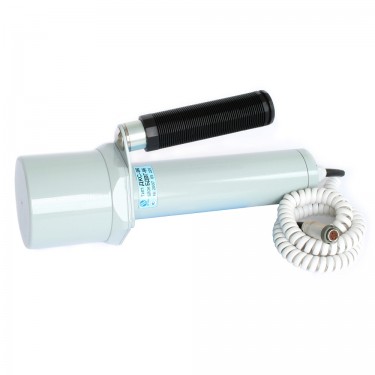

BDVG-96

High sensitivity Gama radiation measurements NaI(Tl) probe for DKS-96

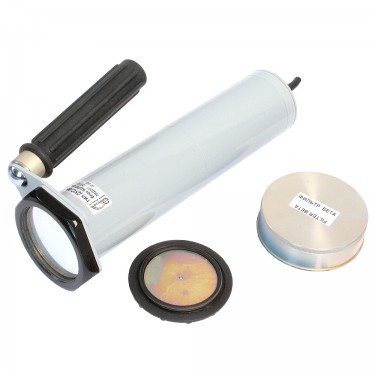

BDPS-96

Alfa and Beta radiation measurements probe for DKS-96

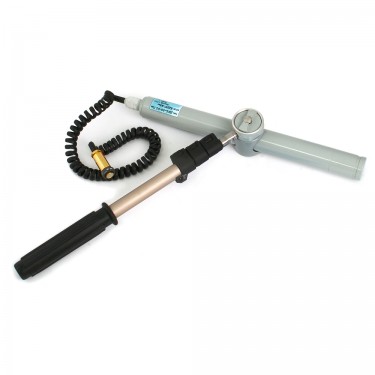

BDPG-96M

Gama radiation NaI(Tl) search probe for DKS-96, sufficient sensitivity for survey applications, designed for hard-to-reach places

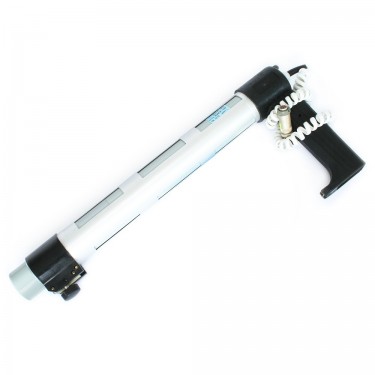

BDPG-96

Gama radiation NaI(Tl) search probe for DKS-96

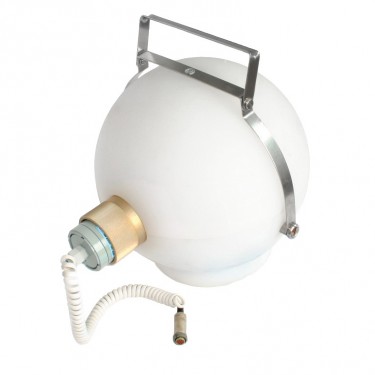

BDMN-96

Neutron dose and dose rate probe with moderator for DKS-96

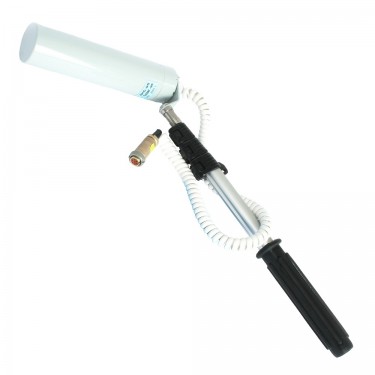

BDMG-96

Gamma radiation measurements GM probe for DKS-96, wide range, automatic switching between scales for low and high dose rate values

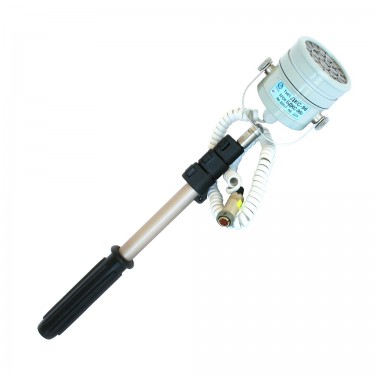

BDKS-96S

Gamma and Beta radiation (accompanied by gamma background) measurements Ø80×80mm probe for DKS-96, automatic compensation for gamma background during beta measurements

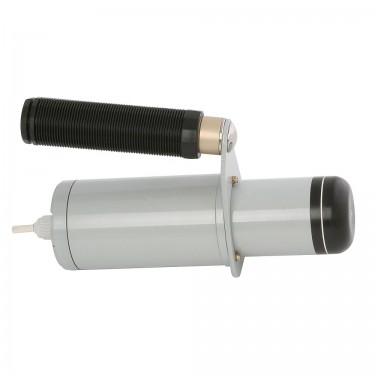

BDKS-96b

Gamma and X-ray radiation measurements Ø45×20mm probe for DKS-96

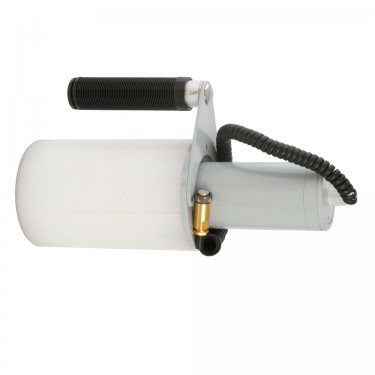

BDKN-96

Neutron dose rate, power flux density and dose measurements probe for DKS-96

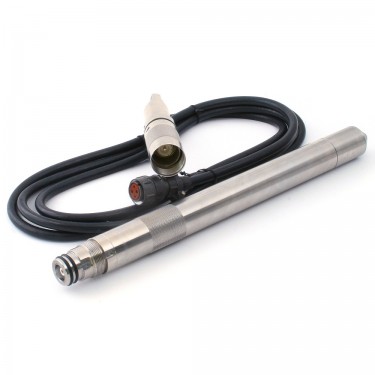

BDKG-96

stainless steel casing Gama radiation NaI(Tl) search probe for DKS-96, designed for geological applications, borehole and well logging, inspection of radioactive substances in soil, pulp and water
